Provide standard definition and high-definition solutions

system composition

The speeding capture system consists of four parts: front-end vehicle detection component (video) and radar, capture host, license plate recognition system, and capture system illegal management software.

System working principle

The system monitors the speed and image of the road surface at a specific location, using Doppler frequency change technology to measure the speed of moving vehicles. When the moving target exceeds the initial plastic value, the system receives a radar detection trigger signal, and uses a camera to capture near and far range images of the speeding vehicle. Then, through the data acquisition system, the image is sent to the industrial computer for image signal processing, thereby obtaining a clear image of the illegal target, At the same time, it can generate illegal images and speed information databases, and generate illegal penalty notices according to actual requirements, providing traffic management as the basis for law enforcement.

Main characteristics of the system

◆ Adopting advanced microwave technology, effectively compressing the radar beam width, reducing the irradiation area, and completely overcoming interference from vehicles on the road.

The system's capture is constrained by multiple conditions such as video discrimination and triggering of speed measurement radar, greatly reducing missed and false capture rates.

◆ Advanced image processing technology is adopted to accurately and clearly capture the position of the captured image. A panoramic and close-up image can be captured, and the captured image can clearly distinguish the illegal time, illegal location, illegal type, vehicle model, license plate number, vehicle color, and other content.

The system adopts an embedded operating system based on industrial computers, which has system protection and self recovery functions, effectively preventing malicious attacks from computer viruses and hackers. Provided system security and stability.

The embedded operating system carrier adopts a highly reliable industrial grade electronic disk that is resistant to harsh environments. Compared to ordinary hard drives, electronic disks have the following advantages: strong shock resistance and pollution resistance; No noise, no seeking errors, especially due to its excellent performance in shock-absorbing function, it is widely used in industrial control environments.

◆ Multi directional and multi lane (up to eight lanes in both directions).

◆ Power off and restart, the host can work continuously for a long time. Once the power is cut off and shut down, the host can automatically run the program after a power call.

◆ Equipped with lightning protection, ventilation, heating, and automatic temperature control functions.

◆ Advanced fill light technology, the capture system adopts a long-life and high brightness LED fill light, and applies video synchronization technology. The fill light does not light up normally, but only turns on when confirming the capture and turns off after capture.

◆ Transmission function, the system has wired and wireless communication interfaces, which can automatically or regularly transmit captured images to the penalty center, and receive instructions from the penalty center for real-time data transmission and historical data transmission.

In terms of system security design, there is a monitoring unit that can achieve dual monitoring and protection of software and hardware. When there are problems with the system software, the system can be reset to restore its operation. Once the software fails, the hardware monitoring system can reset the entire host system, achieving dual protection and improving system security and stability.

System technical parameters

◆ Radar: Operating frequency 24.15GHz, accuracy 1km/h

Industrial computer: PIV 2.4G 512MRam 80GHD

◆ Standard definition camera: 520 lines, 18x 0.01Lux1/50 to 1/10000 seconds; High definition camera: above 130W pixels

Speed measurement range: 20-240km/h

Image resolution: 768 × 576 (clear); one hundred and twenty-eight × 1024 or above (HD)

◆ Standard definition images: 2 per vehicle (1 far shot, 1 close shot); High definition image: 1 image per vehicle (one image reflects distant and close range)

◆ Capture rate: not less than 99%

◆ License plate recognition rate: not less than 95% during the day and not less than 90% at night

◆ Power consumption: less than 200w

Working temperature: -40~75 ℃

Working voltage: AC200V ± 44V, 50Hz

◆ Insulation resistance: greater than 100M Ω

◆ Voltage withstand: 1500V, 50Hz

◆ Mean time between failures: over 3000 hours

Standard definition speeding capture effect image

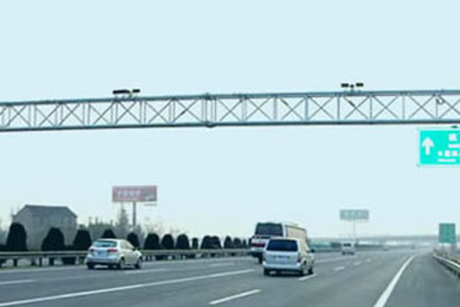

Standard definition overspeed on-site installation rendering

High definition capture effect image (original image pixels are 1360 * 1024, the image is a compressed photo, and to protect privacy, the face and license plate of the image are blurred)
