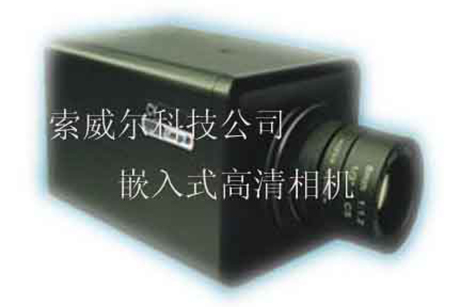

Product name: DSP embedded license plate recognition high-definition all-in-one machine

Product model: SWR-ITS200

Product parameters: Applied to electronic police officers running red lights, security checkpoints, speeding capture, and vehicle capture systems

Product detailed introduction

The SWR-ITS200 checkpoint high-definition integrated camera integrates image, control, capture, storage, and transmission, and can be widely used in red light running, checkpoint, and overspeed systems without the need for an industrial computer. Embedded DSP digital processing chip, using Linux operating system. Integrated video detection, license plate recognition and other modules.

Product Description

1. Adopting advanced video compression technology, with high compression ratio and very flexible processing

2. 2 million pixels, 2/3 "progressive scanning CCD, with a maximum edge splitting rate of 1920 × one thousand and seventy-two

3. Supports both encoding and capture functions

4. Supports JPEG capture, with a maximum image size of 1920 × one thousand and seventy-two

5. Supports license plate recognition and continuous capture function

6. Support power synchronization function

7. Supports flash synchronization, up to 3 flash synchronization outputs

8. Supports input of traffic light signal status, and different triggering methods can be set under red and green lights

9. Supports external trigger, network trigger, video trigger (virtual coil), RS-485 trigger capture function

10. RS-485 function, supporting 485 triggering and information acquisition functions

11. Camera parameter setting functions: exposure speed, AGC control, white balance mode control, etc

12. Local video for easy debugging

Detailed parameters

Model: SWR-ITS200

◆ Name: 2 million 2/3 "CCD intelligent transportation network camera

◆ Camera sensor type: 2/3 "SONY Progressive Scan CCD

◆ Minimum illumination: 0.1Lux @ (F1.2, AGC ON)

Shutter: 1/25 second to 1/30000 second

◆ Lens interface type: C/CS interface

◆ Automatic aperture: DC drive

◆ Compression standard: Video compression standard H.264

◆ Compressed output bit rate: 32 Kbps~16M bps

Image format: JPEG

Maximum image size: 1920 × one thousand and seventy-two

◆ Frame rate: 25fps (1920 × 1072)

◆ Image settings: saturation, brightness, contrast, white balance, gain adjustable through software

◆ Network function storage function: supports SD/SDHC

◆ Support protocols: TCP/IP, HTTP, DHCP, DNS, RTP/RTCP, support for uploading images via FTP

◆ General functions: heartbeat, password protection

◆ Special functions support license plate recognition, including video triggering, external I/O triggering, network triggering, RS-485 triggering, traffic light status input, JPEG capture function, supplementary light synchronization, power synchronization, and IO speed measurement function

◆ Interface: Communication interface: 1 RJ45 10M/100M adaptive Ethernet port, 1 RS-485 interface

◆ Trigger input: 4 external trigger signals

◆ Trigger output: 3 channels (optocoupler isolated 3500VAC), can be used as synchronous output control for flashlights

◆ Video output: 1Vp-p Composite Output (75 Ω/BNC)

◆ General specifications: Working temperature and humidity -10 ℃~60 ℃, humidity less than 90% (no condensation)

◆ Power supply: DC12V ± 10%

◆ Power consumption: 10W MAX

Size (mm): 71.6 × sixty-seven point six × one hundred and sixty-five

◆ Weight: 750g
